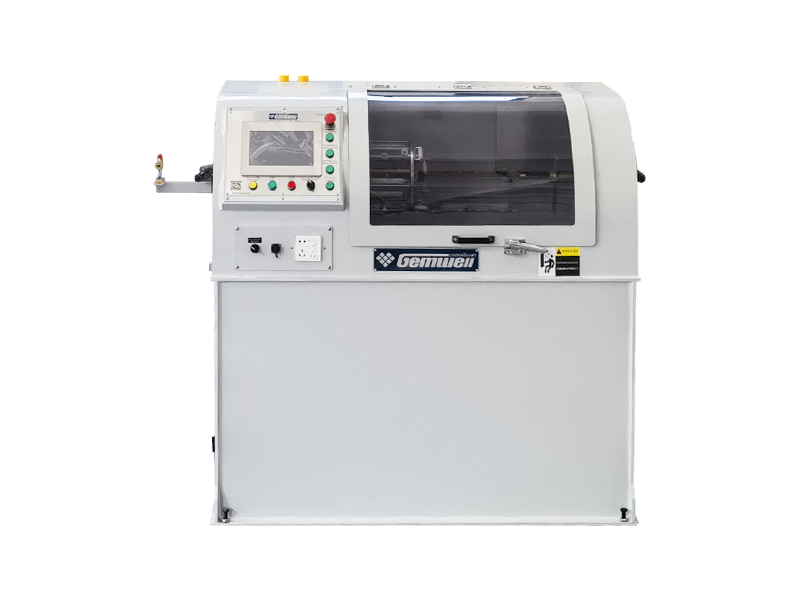

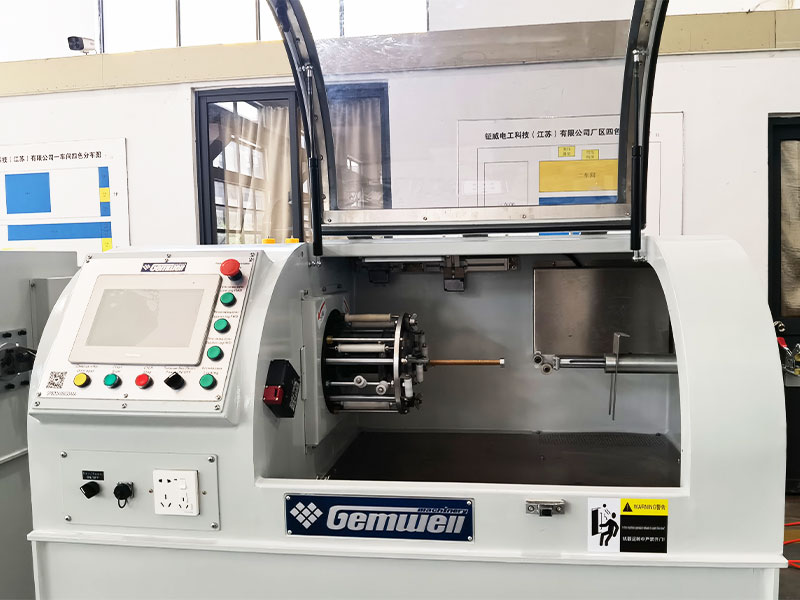

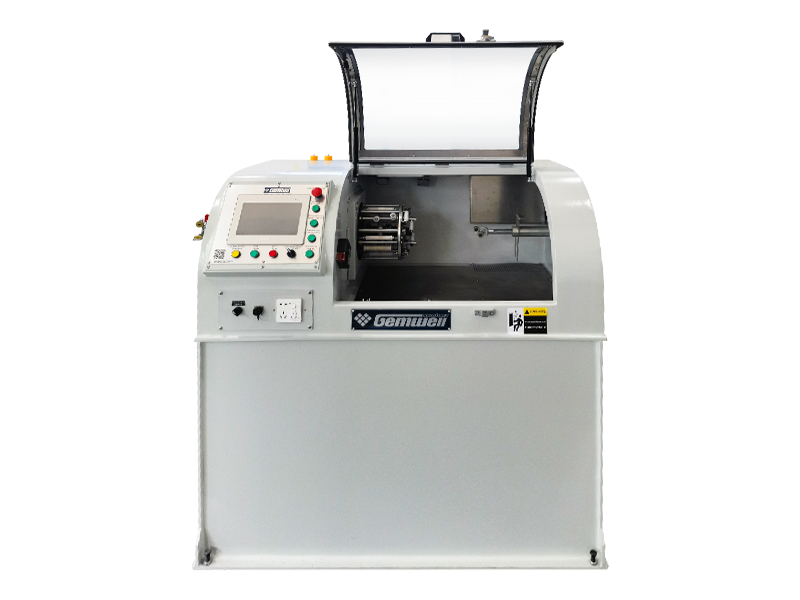

Three Servos Active Type Wire Taping Machine

Three Servos Active Type Taping Machine for Phase Stable Cable

The military industry is the main application field for phase-stable cables, such as phased array radar, missiles, ships, and electronic warfare systems. Compared to other types of cables, phase-stable cables excel in performance indicators and flexibility. There are two types of phase stability: mechanical phase stability and temperature phase stability. Mechanical phase stability refers to the phase shift caused by the dimensional changes and structural variations of the cable components when subjected to mechanical forces such as bending or twisting. The mechanical phase stability index is influenced by bending methods and radii, and the data vary with different test methods and bending radii. For example, in phased array radar systems, the antenna units need to synchronously transmit signals to the mainframe for analysis and processing, but the distance from different positions on the antenna surface to the mainframe interface varies. A set of phase-matched cable components will take different paths from the antenna units to the mainframe interface, resulting in different numbers of bends and bending radii. Therefore, in the design process, attention should be paid to the tightness and stability of the inner conductor, insulation, and outer conductor, reducing or avoiding relative sliding between the three. Temperature phase stability refers to the performance of the cable materials and their internal interactions with temperature changes, which will affect the overall phase variation with temperature. For example, when the ambient temperature rises, the insulation material expands and its sealing performance decreases, resulting in a decrease in the dielectric constant, an increase in propagation speed and a decrease in phase. At the same time, as the temperature rises, the cable conductor expands, and its physical length also increases, resulting in an increase in phase. For instance, in the deployment of phased array radar or missiles in high-altitude areas, the large temperature difference between day and night can exceed the range that ordinary cables can withstand, resulting in significant phase changes and signal delays. High-performance coaxial cable components must have good mechanical phase stability and temperature phase stability. GEMWELL has been focusing on the innovation and research of wire wrapping machines for 20 years. Through continuous improvements, GEMWELL Three Servos Active Type Taping Machine for Parallel Pair Signal Wire has become a better choice for replacing traditional wrapping machine models and processes. The following configuration is for a standard setup with three taping heads, and users can increase or decrease the number of taping heads according to different processes. Depending on different wire diameter specifications, the specifications and types of the take-up, pay-off, and capstan can also be customized.

Inquiry +
Product Details

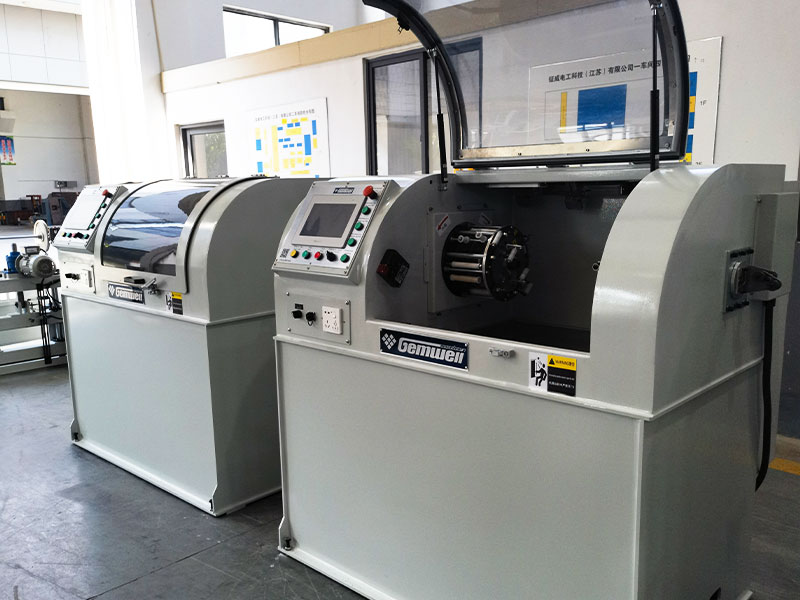

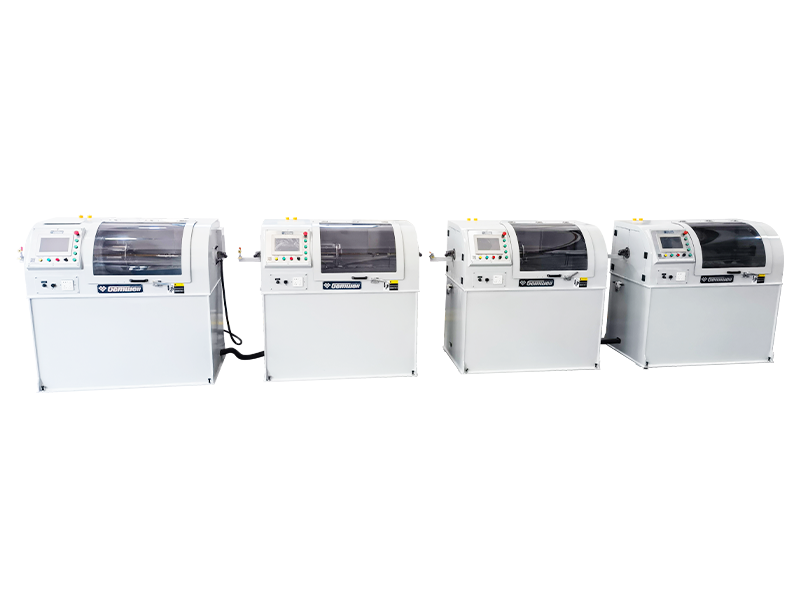

COMPONENTS

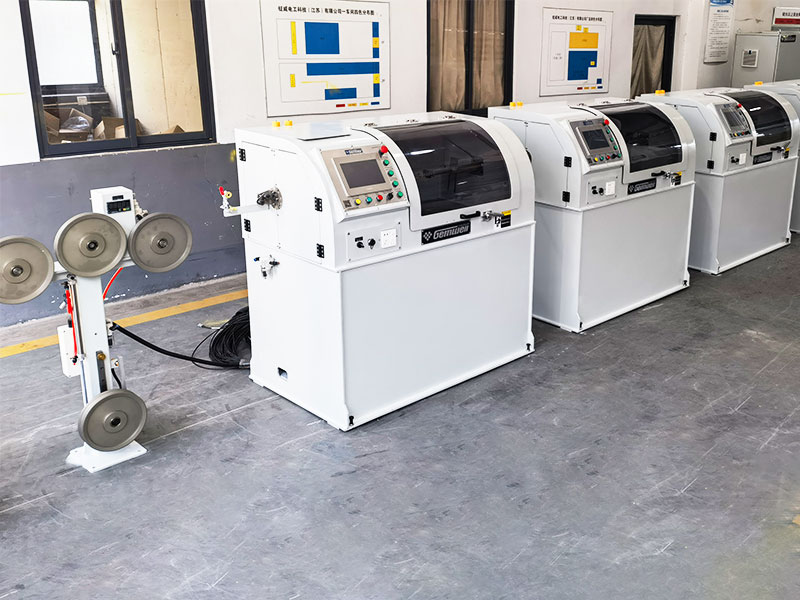

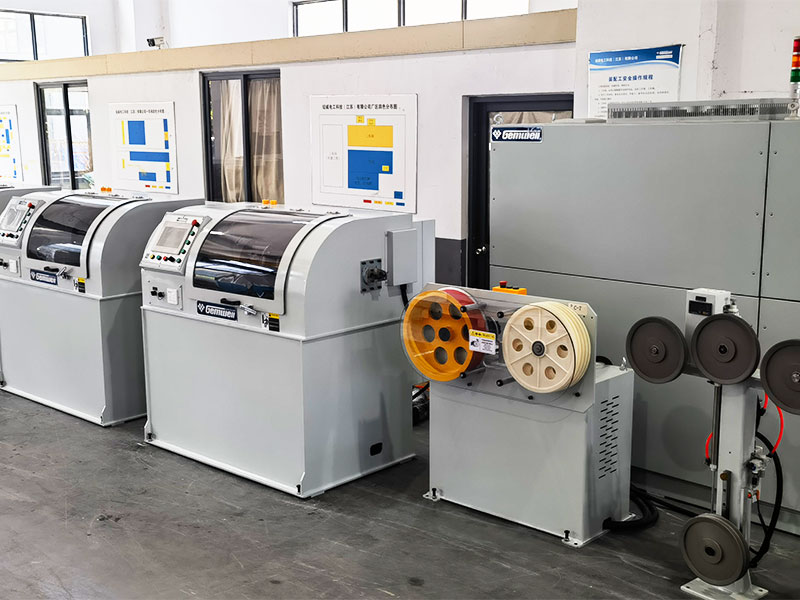

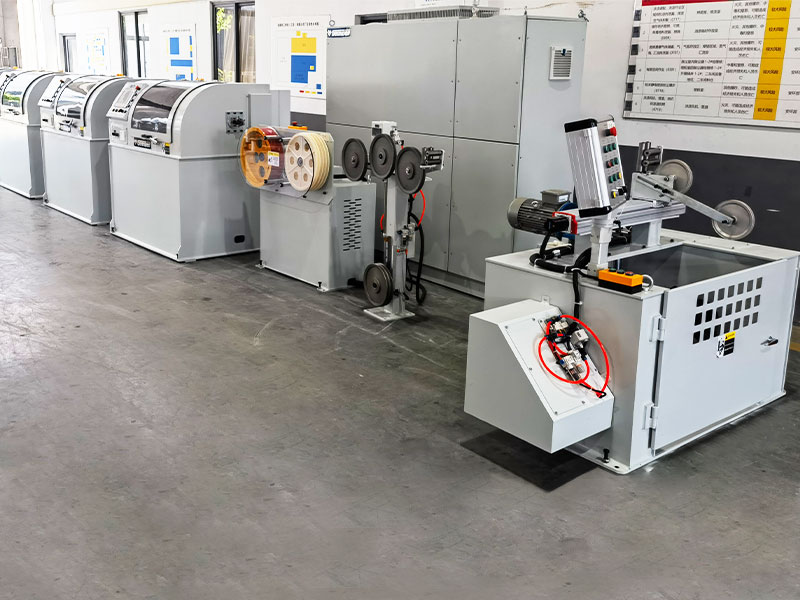

630 power take-up stand 1
Tension stand 1
Three-servo power wrapping machine taping head 1 1
Diameter gauge 1
Three-servo power wrapping machine taping head 2 1
Diameter gauge 1
Three-servo power wrapping machine taping head 3 1
Straight belt capstan 1
Diameter gauge 1
Tension stand 1
Ø630 shaft type take-up machine 1
Control system 1
Stroboscope 1


TECHNICAL SPECIFICATIONS

Structure type Three servo motion controller active type constant tension wrapping machine/power wrapping machine (Patent No. 202122403949.4A)
Suitable wire type Mainly applicable to the production of stable phase cable, coaxial wire wrapping, also for control lines, special cables, and other round wire wrapping and wrapping tape.
Applicable materials AL, MYLAR, COPPER FOIL, PTFE, PI, etc.
Applicable wire diameter Optimum range:Ø0.8-10mm
Product Specification Optimum range:Ø1.0-12mm
Maximum speed MAX2500RPM (no load), the actual start-up speed is set according to the wire requirements
Wire-speed range 1-15m/min, the speed range is different according to the wire type.
Tape reel outer diameter A wrapped turnable is used for both sheet and axial type, O.D. Ø300*Height 120
Tape width 3-30mm
Tape reel inner diameter 50.8/76 universal
Wrapping pitch 1-30mm, program setting
Tension range 2N-60N/200g-6000g
Main motor power 4.4KW servo motion motor
Taping power 1.8KW servo motor
Wrapping tape tension 1.8KW servo motor
Take-up power Linear bel capstan machine, 1.3KW servo motion controller
Pay-off power 0.75KW gear motor
Take-up power 1.3KW servo motor torque mode winding, tensionless dancer
Winding displacement power 0.4KW servo motion controller
Tape length 400mm, without cutting the wire when changing the reel
Tape inspection Automatic shutdown when the tape is about to be exhausted and broken.

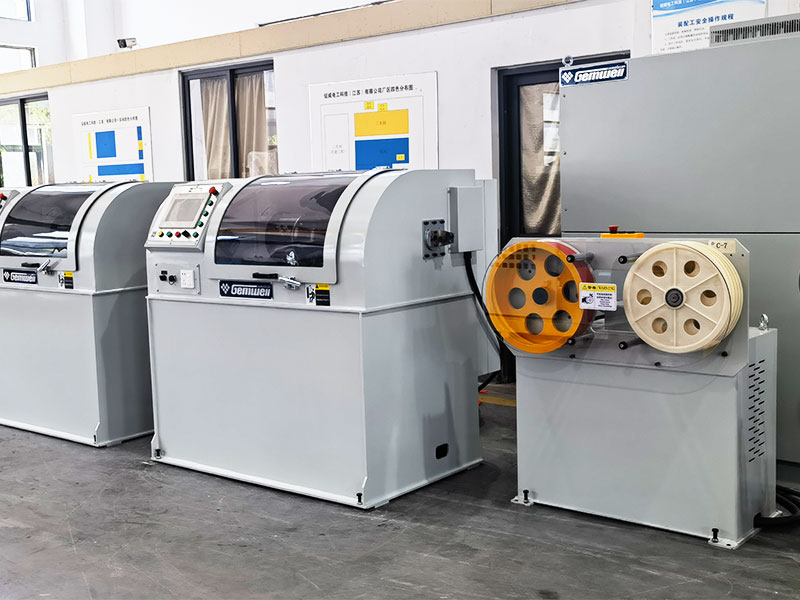

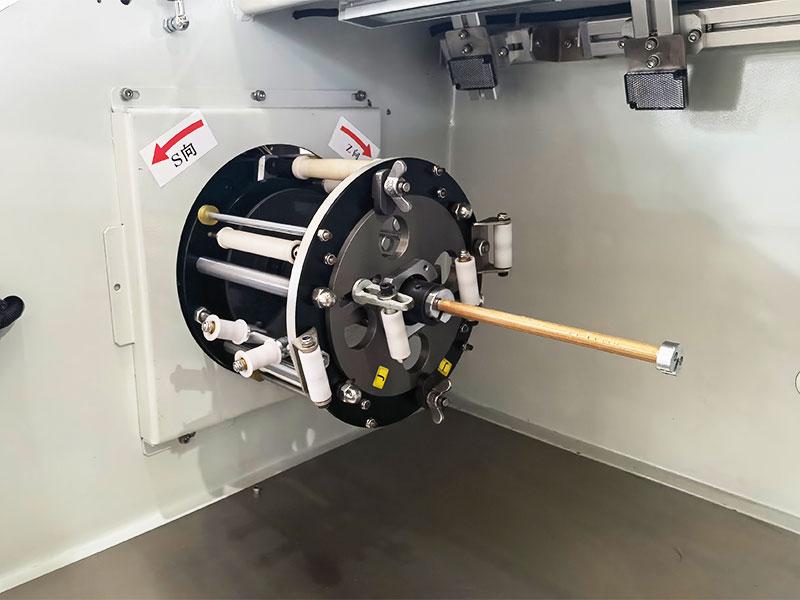

Tape wrapping mould The inner mould of tape is fixed on the central conduit, the outer mould of the wire guide wheel is fixed on the tape storage tube. Both molds are extendable and movable.
Tape wrapping accuracy Pitch tolerance:± 1%, tension tolerance:± 1%.
Overlap rate 0-80%, program setting
Formula management Digital production, tension, outer diameter, pitch, S/Z, row distance, air pressure, and other data can be stored into the PLC.
Tension setting Tension elements of wrapping tape/pay-off/take-up/wrapping are servo motors, SOP process is stored in PLC.
Safety protection Comply with CE standards, with temperature/vibration/noise/pressure automatic detection and prediction.




PRODUCT FEATURES

High productivity: The rotating body is statically balanced and dynamically balanced for testing and correction. When running, the machine has a small vibration and a low voice. The spindle does not generate heat during long-term continuous high-speed operation. It has high production efficiency and cost-effectiveness.

Stable tension: Three servo motors provide power respectively to precisely control the movement of the rotating frame, tape material tray, and tension dancer.

Various influencing factors such as changes in matrial spool or pad diameter and wind resistance are eliminated, resulting in stable tension.

Accurate pitch: Taking the main capstan as the movement benchmark,  the main capstan, and each rotating frame adopt a servo motion controller for precise interlocking motion control so that an accurate wrapping pitch can be obtained at any speed.

Labor saving: A clamping device is installed at the wire inlet end of each wrapping head. The clamping force can be adjusted without damaging the wire; the wire can be withdrawn in the reverse direction; Configuration mode management, one-click retrieval of SOP formula, one-click startup preparation, and one-click start; Stop and shut down when the tape is broken/finished/metered, intelligent control, saving manpower.

Low failure rate: no collector ring, no carbon brush, except for the regular replacement of wearing parts of the tape guiding roller, low failure rate.

Easy maintenance: Using Profinet bus control, fast signal transmission, low interference, remote fault detection cability. Troubleshooting and maintenance are available no matter the machine is in any country in the world, as long as there is a communication network, then rapid remote maintenance services can be provided.
