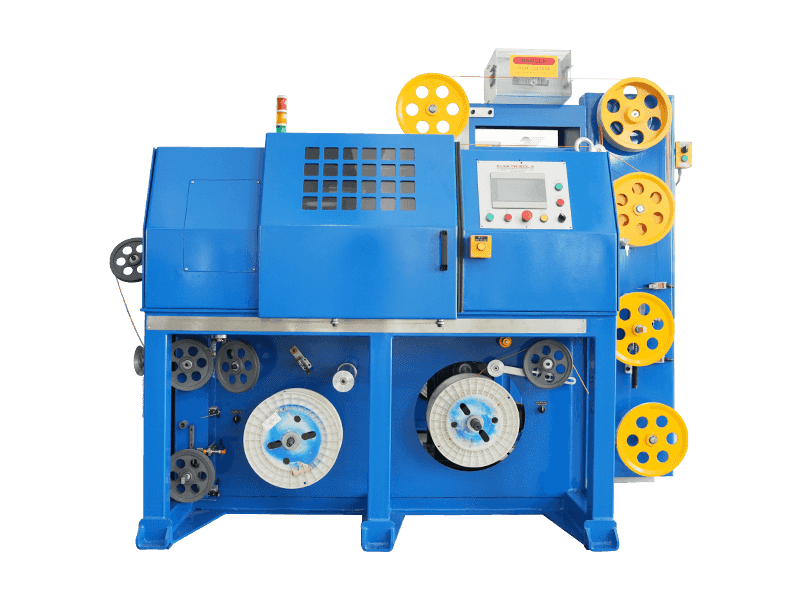

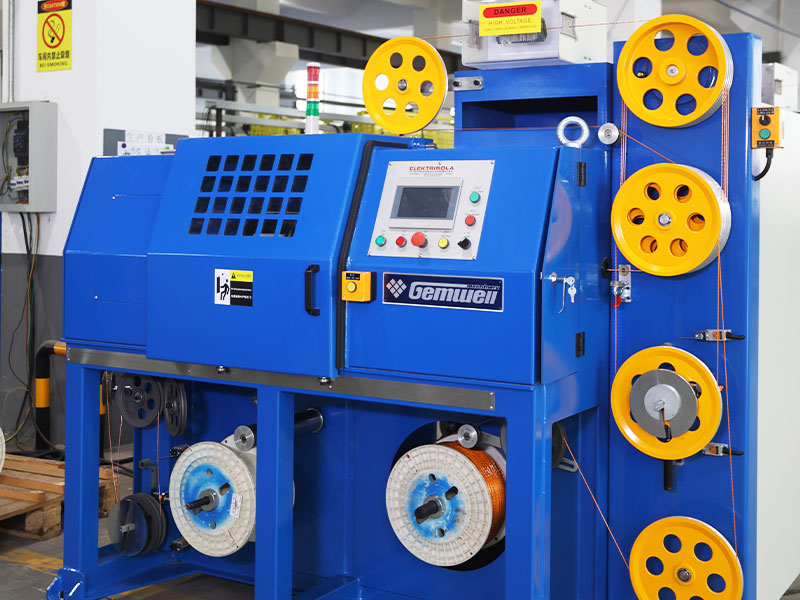

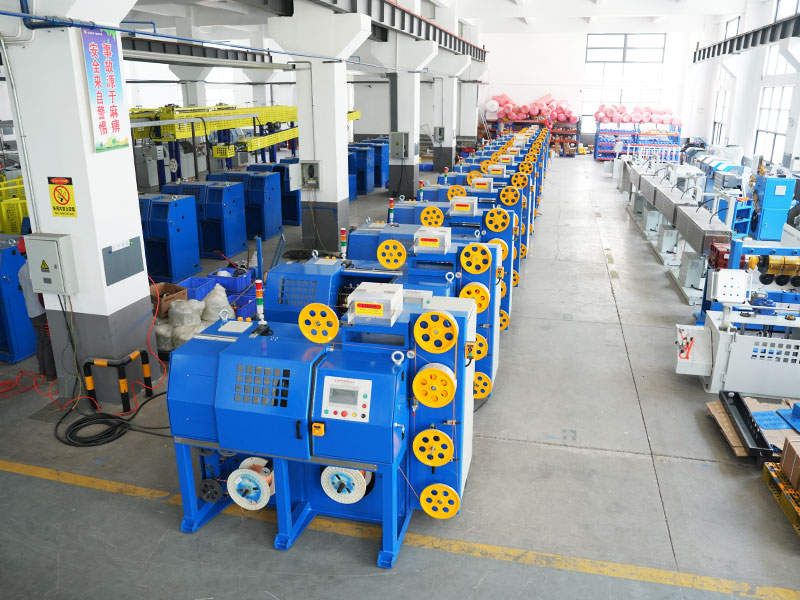

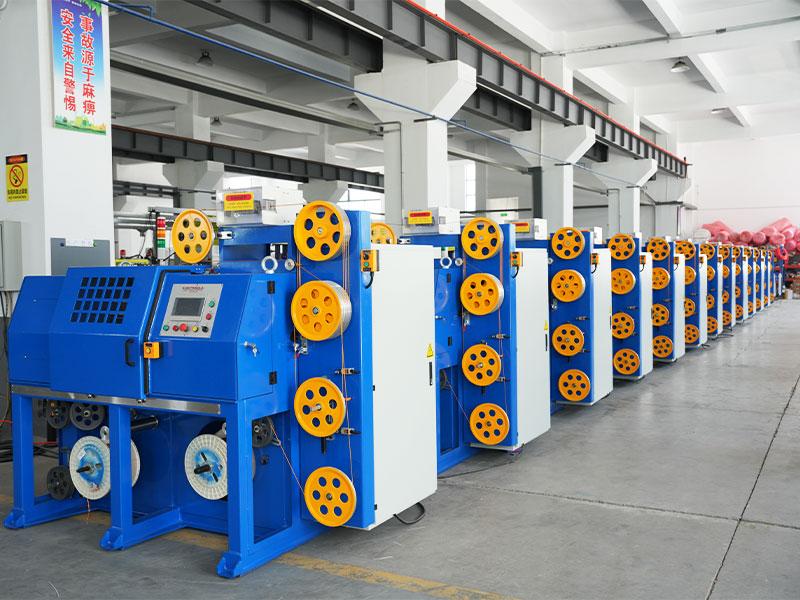

Hysteresis Tension Type Taping Machine for Litz Wire

The word "Litz" comes from the German "Litzendraht". High-frequency Litz wire is made of multiple strands of mutually insulated single wires. It has good flexibility and operates at a frequency between 10kHz and 5MHz. Typical applications include: EV (Electric Vehicle), OBC (On-Board Charger), DC/DC converter, SMPS (Switching Power Supply), wireless charging, charging pile, transformer, frequency converter, motor, communication and IT equipment, ultrasonic equipment, Sonar equipment, radio equipment, induction heating, etc. High frequencies will produce eddy current losses, which increase as the current frequency increases. The root cause of these losses is the skin effect and proximity effect, which are overcome by using the twisted structure of high-frequency Litz wires. With adding additional insulation by covering the Litz wire using an insulating film, it can be suitable for applications that require high breakdown voltage and can withstand high bending and mechanical stress. By selecting the appropriate combination of film package material, quantity and overlapping ratio, the wrapping layers of Litz wire insulation tapes overlapped on each other to achieve appropriate insulation thickness, thereby improving the dielectric strength, breakdown voltage, heat resistance and flexibility. In order to prevent the film from detaching during or after the production process, self-adhesive film materials can also be used to wrap the wire core to meet the specified creepage distance. Since its establishment of 20 years ago, GEMWELL has provided more than 100 sets of wrapping machine production lines to a world-renowned litz wire manufacturer in Germany. The litz wire comes from GEMWELL wrapping machines, and GEMWELL is the leader in wrapping litz wire. The following configuration of Hysteresis Tension Type Taping Machine for Litz Wire is a conventional configuration of two wrapping heads. Users can increase or decrease the number of wrapping heads according to different cable manufacturing processes. Depending on the wire diameter specifications, the specifications and types of take-up, pay-off and capstan machines can also be customized and changed.

Inquiry +
Product Details

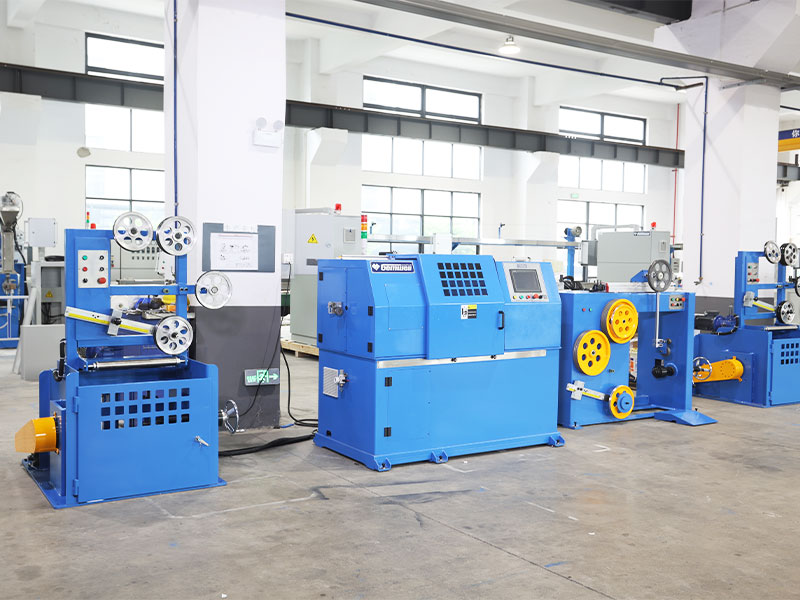

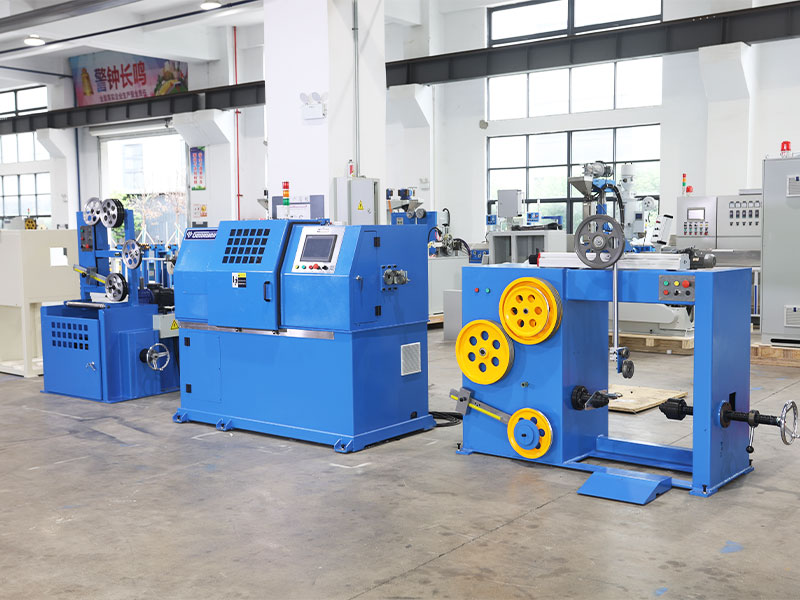

COMPONENTS

Ø400 power pay-off stand 1
Tension stand 1
Hysteresis tension type mica tape wrapping machine taping head 1 1
Hysteresis tension type mica tape wrapping machine taping head 2 1
Ø300 double wheel capstan 1
Tension stand 1

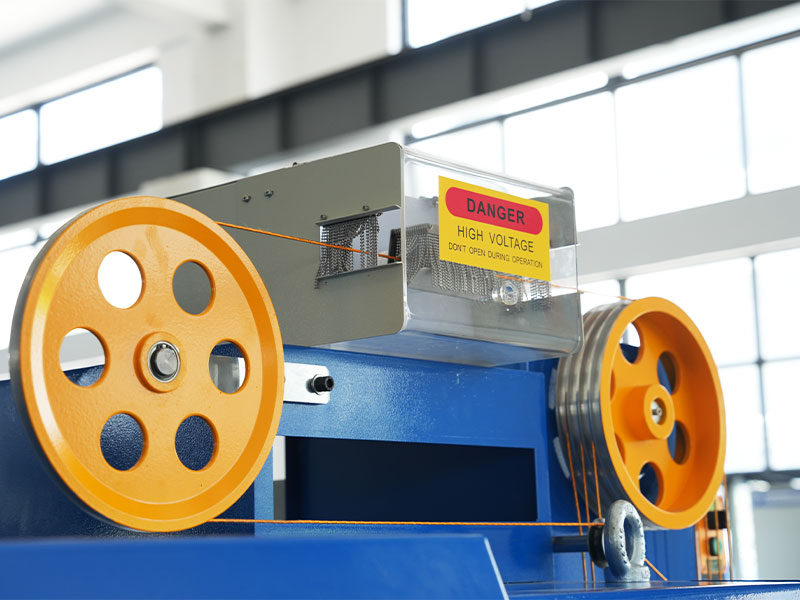

Spark tester 1
Ø400 shaft type take-up machine 1
Control system 1


TECHNICAL SPECIFICATIONS

Structure type Vertical or horizontal hysteresis tension type litz wire wrapping machine
Suitable wire type Suitable for litz wire and other wire wrapping tape machine.
Applicable materials PI/SPI, PET/SPET, PEN/SPEN etc.
Applicable wire diameter Single-core: 0.040-0.700mm, 0.2-3.0mm after stranding, beyond this range need to be designed and configured separately.
Product Specification Ø0.4-4.0mm after wrapping, beyond this range need to be designed and configured separately.
Maximum speed MAX2200RPM (no load), actual start-up speed is set according to the wire requirements
Wire speed range 5-50m/min, speed range is different according to different wire types.
Tape reel outer diameter Optimal range:Ø260*200
Tape width 5-20mm
Tape reel inner diameter 50.8/76 generally
Wrapping pitch 3-30mm, program setting
Tension range 5N-50N/500g-5000g
Main motor power 3KW servo motion controller
Taping power Passive tape pay-off, no power
Wrapping tape tension 3NM hysteresis clutch
Take-up power 0.4KW servo motor
Pay-off power 0.4KW gear motor
Take-up power 0.4KW gear motor
Winding displacement power 0.4KW servo motion controller
Tape length 1 reel + 3 reels, without cutting the wire when changing reel
Tape inspection Automatic shutdown when the tape is about to be exhausted and broken.
Tape wrapping mould The inner mould of tape is fixed on the central conduit, the outer mould of the wire guide wheel is fixed on the tape storage tube. Both molds are extendable and movable.
Tape wrapping accuracy Pitch tolerance:± 2%, tension tolerance:± 5%.
Overlap rate 0-80%, program setting
Formula management Digital production, tension, enabling storage of temperature, outer diameter, pitch, S/Z, row distance, air pressure and other data into the PLC.
Tension setting Tension elements of wrapping/pay-off/take-up/wrapping are servo motors, SOP process is stored in PLC.
Safety protection Comply with CE standards, with temperature/vibration/noise/pressure automatic detection and prediction.




PRODUCT FEATURES

High productivity: The rotating body is statically balanced and dynamically balanced for testing and correction. When running, the machine has small vibration and low voice. The spindle does not generate heat during long-term continuous high-speed operation. It has high production efficiency and cost effectiveness.

Stable tension: The hysteresis rotor cuts the magnetic field to form tension without mechanical friction. It is equipped with an automatic degaussing function and a cooling fan to ensure stable tension.

Accurate pitch: Taking the main capstan as the movement benchmark,  the main capstan and each rotating frame adopt a servo motion controller for precise interlocking motion control so that an accurate wrapping pitch can be obtained at any speed.

Labor saving: A clamping device is installed at the wire inlet end of each wrapping head. The clamping force can be adjusted without damaging the wire; the wire can be withdrawn in the reverse direction; Configuration mode management, one-click retrieval of SOP formula, one-click startup preparation, and one-click start; Stop and shut down when the tape is broken/finished/metered, intelligent control, saving manpower.

Low failure rate: no collector ring, no carbon brush, except for the regular replacement of wearing parts - the tape guiding roller, low failure rate.

Easy maintenance: Using Profinet bus control, fast signal transmission, low interference, remote fault detection cability. Troubleshooting and maintenance are available no matter the machine is in any country in the world, as long as there is a communication network, then rapid remote maintenance services can be provided.
