Solid Core Wire Insulation Extrusion Line

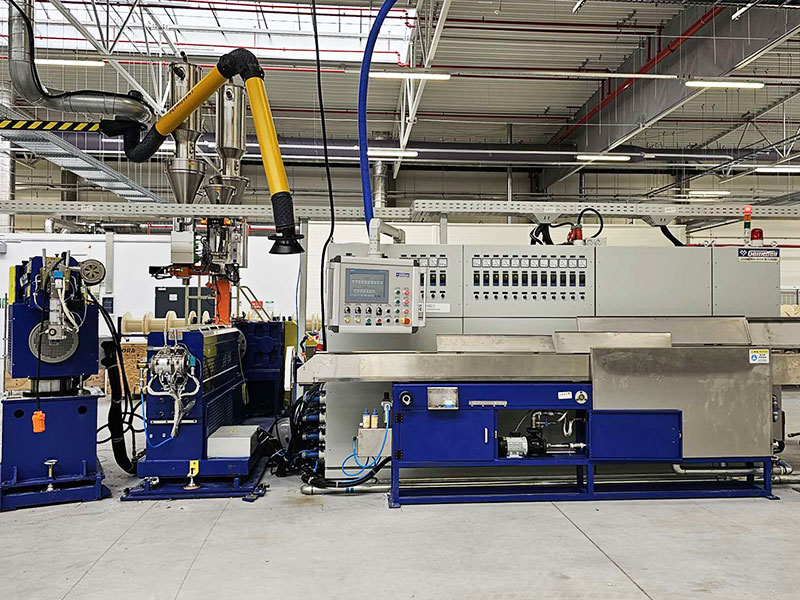

PVC/PE/PP/PU Core Wire Insulation Extrusion Line

PVC/PE/PP/PU Core Wire Insulation Extrusion Line is an non-standardized equipment with customization. The main machine model is generally 30-65mm. It is suitable for solid core extrusion of electronic wires, signal wires and other wires. The extrusion temperature is medium to low temperature. It is the industry's mainstream core wire extrusion equipment. An desirable core wire insulation extruder has the following characteristics: uniform screw plasticization, accurate temperature control, high machine head concentricity, stable wire diameter tolerance, stable pay-off, and take-up tension, and high overall machine production efficiency. Different users will have different needs when ordering this machine. Our company can support personalized customization according to user needs. In terms of hardware, we can provide a variety of models and core accessories brands for users to choose from. In terms of electrical control software, we can also provide economical and practical or advanced electrical control methods. Due to different overall configurations, the price of this machine also varies greatly. Therefore, the main factor that determines the price of this machine is the user's product configuration level positioning. In addition, because this product is a non-standardized customized equipment with only small lot production, it takes longer period for the design, manufacturing, installation, and debugging. Users must reserve sufficient procurement cycles to achieve desirable product delivery.

Inquiry +
PREV：LSZH/XLPE/TPE/TPU Core Wire Insulation Extrusion Line
NEXT：No next article
Product Details

COMPONENTS

● Pay-off stand
● Straightening stand

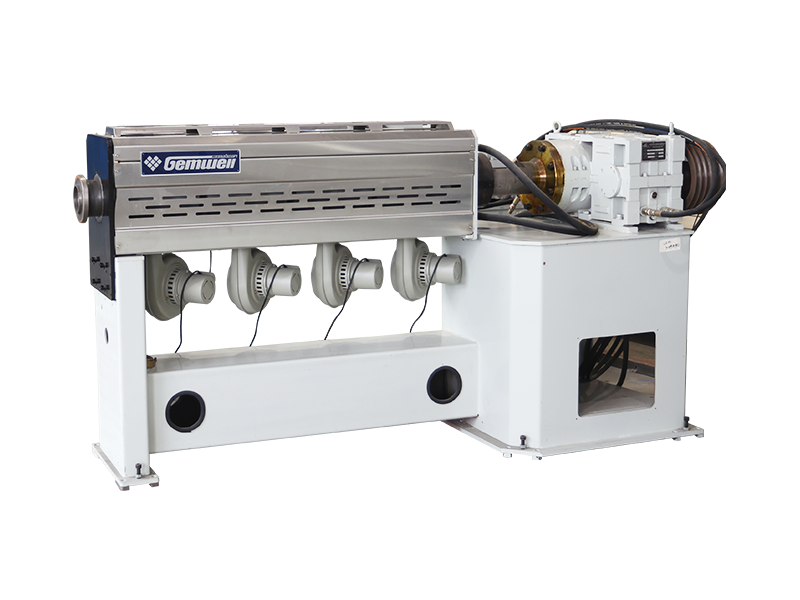

● Main extruder
● Extruder head
● Material drying machine
● Constant temperature movable flume
● Cooling water tank
● Air blowing nozzle
● Capstan
● Wire accumulation stand
● Meter counter
● Laser diameter gauge

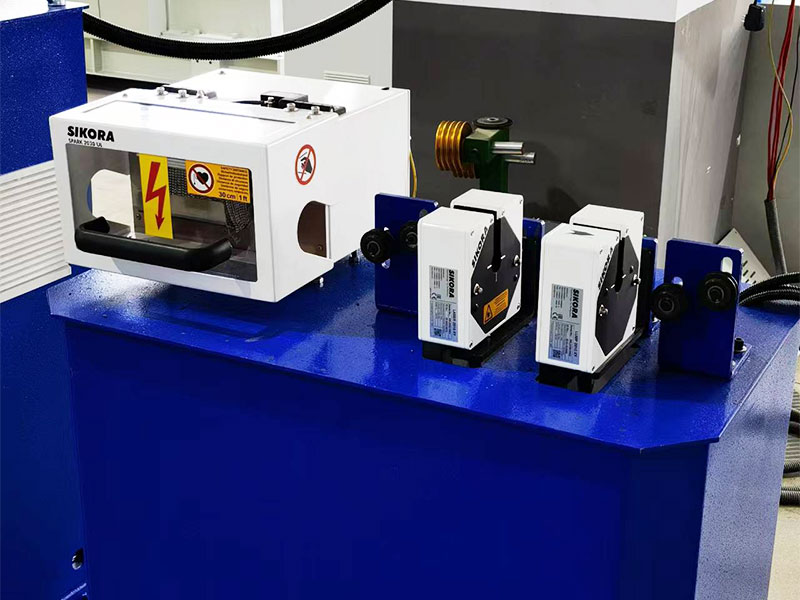

● High-frequency spark tester
● Take-up
● Electricity Control Box
● The following are custom options
● Preheater
● Injection machine
● Printer
● BY-PASS material discharge valve
● Vacuum device
● Feeding hopper dryer
● Lump detector
● Water electrostatic capacitors
● Eccentricity gauge
● Electronic billboard
● Other peripheral auxiliary equipment can be customized and added.


TECHNICAL SPECIFICATIONS

Main Technical Parameters 30+25 type 35+25 type 40+30 type 45+35 type 50+35 type 60+40 type 70+40 type 80+40 type
Suitable wire type Suitable for high-frequency wire, data cable, UL electronic wire, building wiring BV/BVR, power cord, automotive wire and other wires of the copper wire conductor solid core insulation extrusion
Conductor range for US standard AWG36-26 AWG34-22 AWG32-20 AWG30-18 AWG28-14 AWG26-10 AWG18-5 AWG12-2
Conductor diameter range Ø0.13-0.40mm Ø0.16-0.65mm Ø0.20-0.81mm Ø0.25-1.02mm Ø0.32-1.63mm Ø0.40-2.59mm 1.02-4.62mm Ø2.05-6.54mm
Conductor area range 0.01-0.15m㎡ 0.02-0.35m㎡ 0.03-0.75m㎡ 0.1-1.5m㎡ 0.2-2.5m㎡ 0.5-6.0m㎡ 1-16m㎡ 3.5-35m㎡
Extrusion outer diameter Ø0.3-1.0mm Ø0.4-1.3mm Ø0.5-1.8mm Ø0.7-2.3mm Ø0.8-2.8mm Ø1.2-3.8mm Ø1.8-6.0mm Ø3.0-8.0mm
Wire-speed range 20-200m/min 40-400m/min

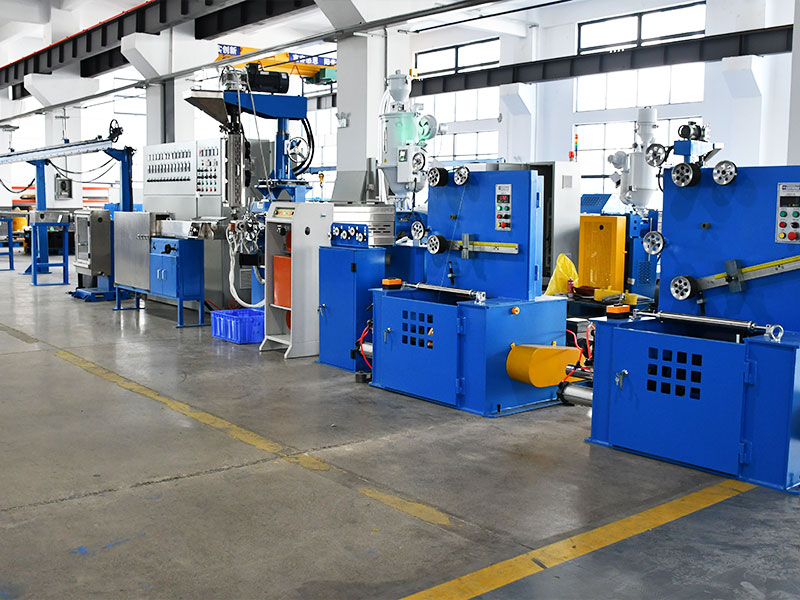

Machine structure Take the extruder head as the central axis, all parts from pay-off to take-up is linearly distributed. The standard extrusion line has a center height of 1 meter and a total length of 20-25 meters

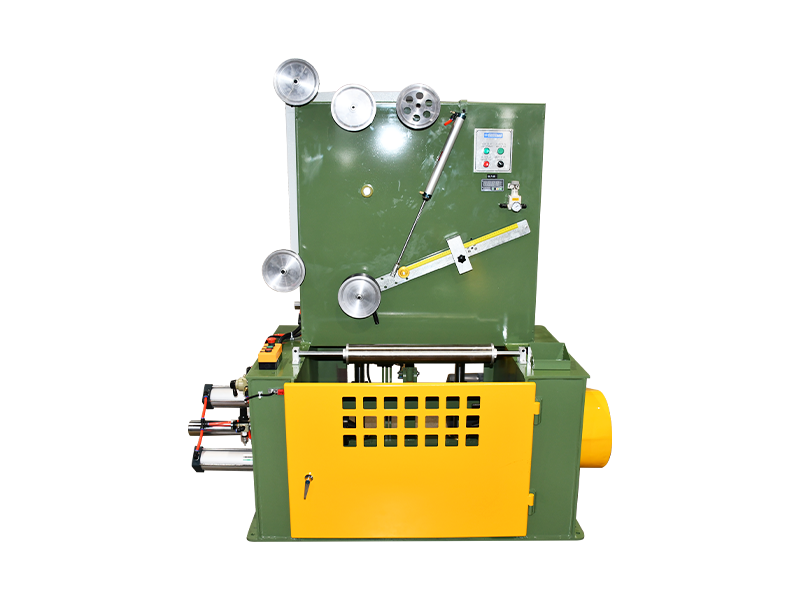

Pay-off type Shaftless active pay-off stand, electric lifting, pneumatic tightening, other types such as flyer pay-off, shaft type pay-off, friction tension type pay-off and other active or passive pay-off stand can also be customized.
Pay-off specifications Ø200/300 Ø300/Ø400/Ø500 Ø500/Ø630/Ø800
Pay-off power 3.7KW 5.5KW 7.5KW
Pay-off tension type Move or adding/removing counterweight blocks to adjust tension, and it can also be customized to adjust the tension with a servo motor.
Straightening stand 5-wheel conductor straightening stand, the OD of conductor straightening wheel is Ø60, single groove, with tool box, and can be customized.
Type of preheater Conductor preheater for copper wires, closed oven hot air conductor preheater, or as straight-through type preheater can be customized.
Power of conductor preheater 3KVA 5KVA 8KVA 10KVA
Extruder Material Output 20kg/h 30kg/h 40kg/h 50kg/h 60kg/h 90kg/h 130kg/h 150kg/h
Extruder Power 7.5KW 11KW 15KW 22KW 30KW 37KW
Screw parameters L/D:28:1，compression ratio: PVC 2.7 double thread screw/PE 3.2 single thread screw/PP 3.2 single thread screw/PU 3.2 single thread screw The L/D ratio is 26:1 and the screw material is 38CrMoAlA made in China, and can be customized.
Heating type Cast aluminium heating rings for the body, copper heating rings for the neck, quartz heating tubes for the extruder head clamps/heads/die.
Temperature control  Body3+clamp1+neck1+head1+die1 Body4+clamp1+neck1+head1+die1
Heating power 4KW 6KW 8KW 9KW 10KW 14KW 18KW 22KW
Barrel cooling 3-section centrifugal fan 4-section centrifugal fan
Feeding hopper dryer 12KG 25KG 50KG
Honeycomb plate The machine is made of 316 stainless steel without electroplating. It has an internally guided flow structure, with flow holes interconnected by chamfers with no dead corners. The honeycomb plate and flange are sealed with a tapered sealant to prevent leakage.
Head type ​U7-type auto centering extruder head, deep groove low-pressure outer runner uniform pressure movement, can be customized with different structures such as single layer/double layer/single injection strip/double injection strips etc., adjustable and other type(auto centering + micro adjustable) can also be customized.
Head brand The machine head is made in China, and can be customized to other brands such as EUROTEK, UNITEK, EUROCAB, and MICRODIA
Head clamp There are two halves of a machine head clamp, with two up-and-down sets of screws rod clamp synchronizely. A one-way wrench can be included, and other types of machine head clamps can be customized.
Head levelling Adopting a head flange double locating pin structure, the height level of the head remains unchanged for a long time.

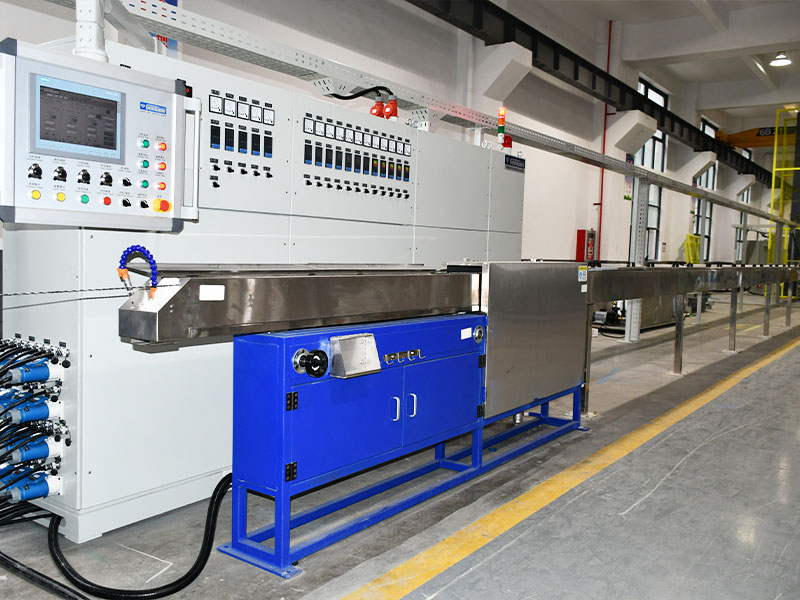

Movable flume Constant temperature movable flume, self-circulating temperature tank. It is equipped with two 9KW heating pipes, and the entire tank is made of SUS304 material. The standard length of the small tank is 1250mm, and customization options are available.

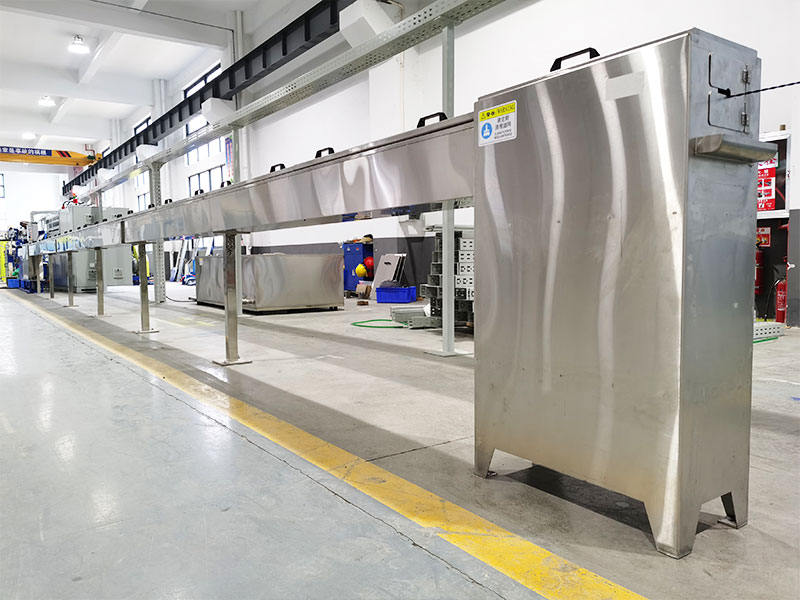

Cooling water tank 5 Meters single-layer U-shaped tank 10 Meters single-layer U-shaped tank, circulating water cooling system, no water chiller. The entire tank is made of SUS304 material. Double-layer U-shaped or W-shaped tanks are available to be customized.
High-pressure air-blowing nozzle Flipped-type blowing nozzle, POM material, double blowing structure, set in the movable water tank, cooling water tank, capstan, other types of blowing nozzle can be customized.
Capstan type Single wheel belt type + 3 groove split piece wheel Lightweight titanium wear-resistant stainless steel double-wheel capstan Anode aluminium double wheel capstan
Capstan wheel diameter Ø375 titanium alloy double wheel type Ø500 double-wheel type
Capstan power 3.7 servo motor 3,7 servo maotor＋gear box
Wire accumulation tension stand Inclined wire accumulation tension stand, total length of 12 meters, steel plate track, lightweight running car, 10 grooves ＋ 9 grooves for wire accumulation wheel, total wire storage capacity is 200 meters, servo motor tension. Other types are customizable.
Wire accumulation wheel diameter Ø100 Ø150, the wheel diameter can be customized Ø180, the wheel diameter can be customized Ø250, the wheel diameter can be customized
Meter counter Guide wheel type meter counter with a meter wheel circumference of 400mm. It uses an encoder to detect and allows for fine adjustment of the meter correction coefficient. Other types of meter counting devices are available.  Pressure roller meter counter, with 500mm meter wheel circumference.
Take-up type Double-head shaft type take-up, automatic reel changing type or other non-shaft wire take-up machines can be customized. Double head shaftless type, electric lifting, pneumatic tightening
Take-up reel spcification Ø200/300/Ø400 Ø300/Ø400/Ø500 Ø400/Ø500/Ø630 Ø500/Ø630/Ø800
Take-up power 2.2KW 3.7KW 5.5KW
Take-up wire arrangement 0.4KW servo motor for wire arrange
Laser diameter gauge Made-in-Chian single-axis diameter gauge, measuring accuracy of 0.001, other brands such as SIKORA/ZUMBACH/PROTON/TAKIKAWA can be customized.
High frequency spark tester Made-in-China high-frequency spark tester, voltage is 0-15KV, other brands, such as CLINTON/SIKORA/PROTON can be customized.
Electricity control box Environmentally friendly flame-retardant paint-coated VICTOR electric cabinet, WEINVIEW 10” HMI, SIEMENS PLC, SCHEIDER switches, RKC temperature controller. Motor and frequency converter brands are customizable.
Total power  38KW 50KW 65KW 68KW 73KW 85KW 100KW 125KW


OPTIONAL CUSTOMISED ITEMS

Capstan wire drop device Core wire insulation extrusion capstan without wire drop device can be customized to add one.
Pressure test Pressure sensors or explosion-proof safety valves can be customized on the head flange.
Printer Ink printers or other types can be customized.
Vacuum extractor Vacuum extraction at the header inlet line can be customized.
Blow dryer High efficiency blow dryer can be customized when machine is in high speed extrusion.
Lump detector Customizable option to add lump detection features to the measuring instrument on Chinese brands diameter gauge, or customize other brands like SIKORA/ZUMBACH/PROTON/TAKIKAWA.
Water static capacitance gauge Water static capacitance gauge, such as BETA/SIKORA/ZUMBACH/PROTON/TAKIKAWA, can be customized.
Eccentricity gauge Eccentricity gauge, such as BETA/SIKORA/ZUMBACH/PROTON/TAKIKAWA can be customized.
Chiller Chiller or tank with insulated layer can be customized.
Hanging electronic board LED double-sided electronic screens or other types are supported.
Intelligent formula management system Intelligent formulation management systems can be customized, and data such as take-up tension, storage line tension, preheating temperature, host temperature control, extrusion diameter, take-up row distance, air pressure values will be fed into the PLC. It uses Profinet bus communication mode, support for MES data acquisition and import, one-key call-out production process, one-key start-up, and enables digital intelligent products.
Peripheral auxiliary Equipment Other peripheral accessories or special customizations for the entire machine can be customized.
Electrical wiring 2.5-meter overhead cable trough stand, air pipes, signal wires, and power cable arranged with isolations, wire inlet from the top of  electrical control box, customizable alternative methods.
Safety regulations standard Manufactured in accordance with China's CCC safety standards, and customizable to meet CE/CSA/UL safety standards.
Power supply standards 3-phase 380V/50Hz power supply, with customizable voltage and frequency for different countries and regions.




PRODUCT FEATURES

● High production yield: Screw-optimized design, wear-resistant, non-stick, chrome without dropping, glue-free hiding, fast color change, high line speed, high production yield.

● Wide range of applications: depending on the type of materials, it can be equipped with the corresponding extruder screw, which can provide single-thread gradient type, BM double-thread separation type, and other types of screws.

● Leak-proof design: The unique sealing and positioning structures ensure that the flange does not leak material, and the height level of extrusion head remains stable even for long-term use.

● High Quality: The concentricity of our insulated wire products ranges from 93% to 97%, and the outer diameter has a tolerance of ±0.003.

● Precise Temperature Control: within ±1℃.

● Intelligent Control: We provide customizable intelligent management systems that allow for one-click access to SOP formulas, one-click machine preparation and startup, and intelligent operation.

● Easy maintenance: Customers outside of China can customize the use of the Profinet bus control system, which ensures fast and low-interference signal transmission. As long as there is a communication network in any country or region, remote fault detection, troubleshooting, and maintenance services can be quickly implemented.
