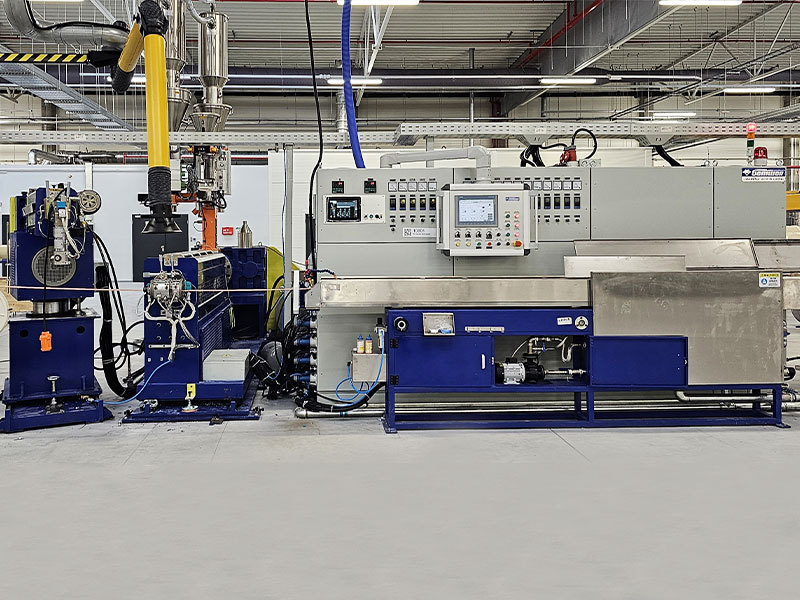

PVC/PE/PP/PU Sheath Extrusion Line

PVC/PE/PP/PU Sheath Extrusion cable

PVC/PE/PP/PU Sheath Extrusion cable is a non-standardized equipment with customization. The main machine model is generally 70-150mm, which is commonly used in wire and cable sheath extrusion production methods. The extruded material has low viscosity, good fluidity, and low resistance, easy to plasticize and form. A desirable sheath extruder has the following characteristics: uniform screw plasticization, accurate temperature control, convenience, easy adjustment on machine head deviation, smooth sheath surface with no molding marks, smooth guide wheel with no damage to the wire, stable wire diameter tolerance, stable take-up, and pay-off tension, changing reels of take-up and pay-off without stopping the machine, saves labor take-up structure, and beautiful wire griding of take-up. Different users will have different needs when ordering this machine. Our company can support personalized customization according to user needs. In terms of hardware, we can provide a variety of models and core accessories brands for users to choose from. In terms of electrical control software, we can also provide economical and practical or the advanced electrical control methods. Due to different overall configurations, the price of this machine also varies greatly. Therefore, the main factor that determines the price of this machine is the user's product configuration level positioning. In addition, because this product is a non-standardized customized equipment with only a small lot of production, it takes a longer period for design, manufacturing, installation, and debugging cycle is long. Users must reserve sufficient procurement cycles to achieve desirable product delivery.

Inquiry +
PREV：No previous article
NEXT：No next article
Product Details

COMPONENTS

● Pay-off stand
● Tension stand
● Straightening stand

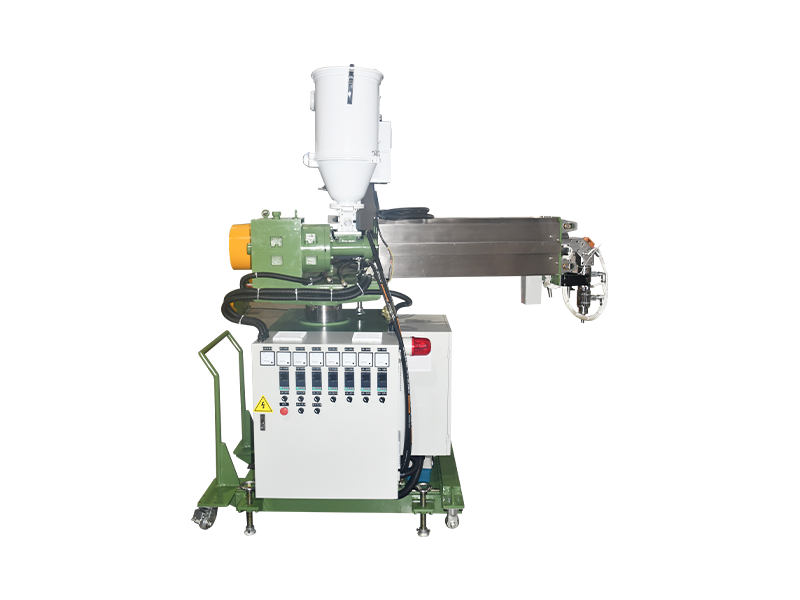

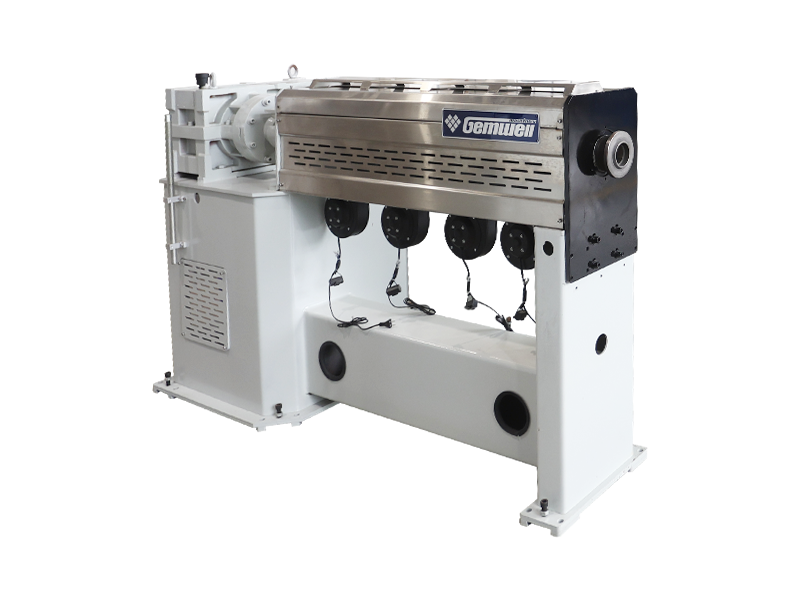

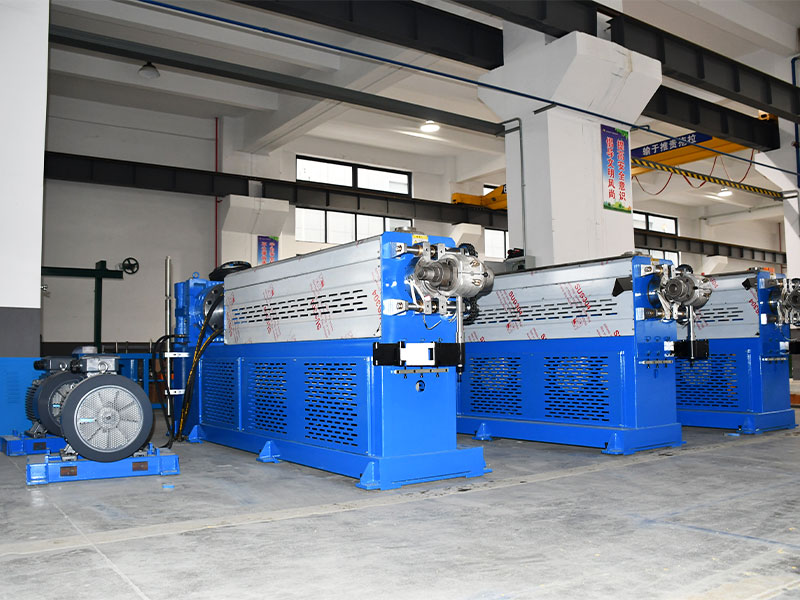

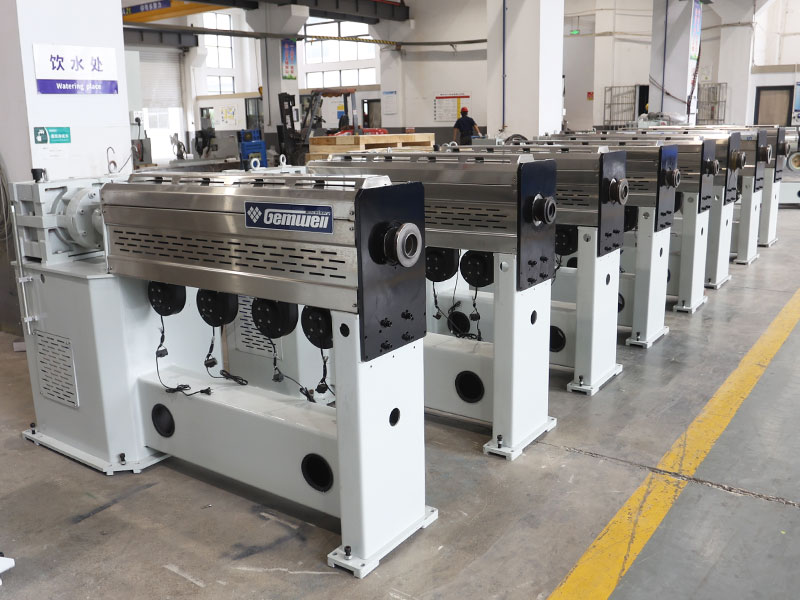

● Main extruder
● Extruder head
● Material drying machine
● Movable Flume
● Printer
● Cooling water tank
● Air blow nozzle
● Capstan
● Wire accumulation stand
● Meter counter
● Laser diameter gauge
● Industrial frequency spark tester
● Take-up
● Electricity Control Box

TECHNICAL SPECIFICATIONS

Main technical parameters 70 Type 80 Type 90 Type 100 Type 120 Type 150 Type
Suitable wire types Suitable for data cable, computer cable, high frequency cable, electric-power cable, power cord and other wire by sheath extruded.
Core Range Ø2-8mm Ø3-10mm Ø5-14mm Ø8-16mm Ø16-36mm Ø30-60mm
Finished Outer Diameter Ø3-10mm Ø4-12mm Ø6-16mm Ø10-20mm Ø18-40mm Ø35-65mm
Wire Speed Range 30-200m/min 20-150m/min 10-80m/min
Machine Structure Take the extruder head as the central axis, all parts from pay-off to take-up is linearly distributed. The standard extrusion line has a center height of 1 meter and a total length of 30-40 meters
Wire Pay-off Type Shaftless pay-off stand, electric lifting. Pay-off power type can be customized to be active or passive, and pay-off stand type can also be customized such as shaft type/portal cradle type.
Pay-off Reel Specification Ø500/Ø630/Ø800/Ø1000/Ø1250 Ø1000/Ø1250/Ø1600/Ø2000/Ø2500
Pay-off power 3.7KW gear motor 5.5KW motor + gearbox
Pay-off Tension type Vertical slide rail tension frame or Shaft lever tension frame, customizable in other styles Shaft lever tension frame, customizable in other styles

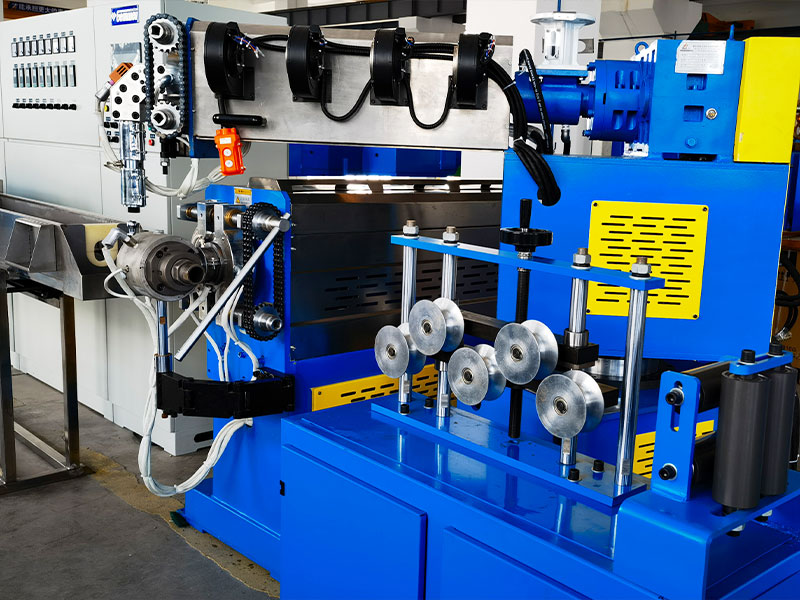

Straightening Frame Five-wheel conductor straightening stand, outer diameter of conductor straightening wheel is Ø100, equipped with tool box.
Extruder Glue Output 130kg/h 150kg/h 220kg/h 270kg/h 380kg/h 560kg/h
Extruder Power 30KW 37KW 45KW 55KW 75KW 132KW
Screw Parameter L/D:26:1，compression ratio: PVC 2.7 double thread screw/PE 3.2 single thread screw/PP 3.2 single thread screw/PU 3.2 single thread screw
Heating Type The extruder body is made of cast aluminum heating coil, the extruder neck is made of copper skin heating coil, and the extruder head is made of cast aluminum heating plate. The extruder head clamp/die is made of quartz heating plate.
Temperature Control extruder body 4 + extruder clamp 1 + extruder neck 1 + extruder head 1 + die 1. extruder body 5 + extruder clamp 1 + extruder neck 1 + extruder head 1 + die 1. extruder body 6 + extruder clamp 1 + extruder neck 1 + extruder head 1 + die 1.
Heating Power 18KW 22KW 27KW 32KW 40KW 60KW
Barrel Cooling Four-stage centrifugal fan Five-stage centrifugal fan Six-stage centrifugal fan
Material drying machine 50KG 100KG 150KG
Honeycomb plate The machine is made of 316 stainless steel without electroplating. It has an internally guided flow structure, with flow holes interconnected by chamfers with no dead corners. The honeycomb plate and flange are sealed with a tapered sealant to prevent leakage.
Head Type Adjustable machine head, Hopper's specification is customized according to the diameter of the wire. It can be designed with single/double layer structures. It can also be customized to an auto centering extruder head type.
Head Brand The machine head is made in China, and can be customized to other brands such as EUROTEK, UNITEK, EUROCAB, and MICRODIA
Head Clamp There are two halves of a machine head clamp, with two up-and-down sets of screws rod clamp synchronizely. A one-way wrench can be included, and other types of machine head clamps can be customized.
Head Level Adopting a head flange double locating pin structure, the height level of the head remains unchanged for a long time.
Movable Flume Ordinary flow tank, no water circulation temperatured tank, made of SUS304 material, small tank standard length is 1250 mm, constant temperature type can be customized.
Printer ​Electric stirring type ink printer, other printing types or add drip diluent injection device can be customized.

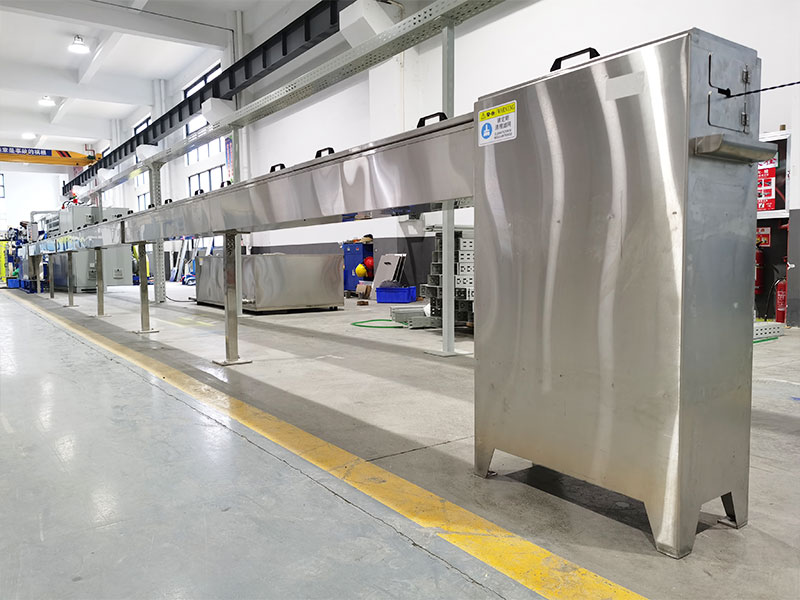

Water cooling tank 10-meter monolayer U-shaped tank, cyclic water cooling, integrated SUS304 material, double layer U-shaped tank or tank length can be customized.
High-pressure blow nozzle Open air nozzle, with material POM and double section air blowing structure, set in an movable tank, cooling tank, capstan. Other types of air nozzles can be customized.
Capstan Type Anode aluminum wheel double wheel capstan Caterpillar capstan
Capstan Wheel Diameter Ø500 two-wheeled Ø600 two-wheeled, can be customised with 800 wheels or other types 4 pairs of cylinders, 800KG 5 pairs of cylinders, 1200KG
Capstan Power 3.7KW servo motor + gearbox 5.5KW servo motor + gearbox

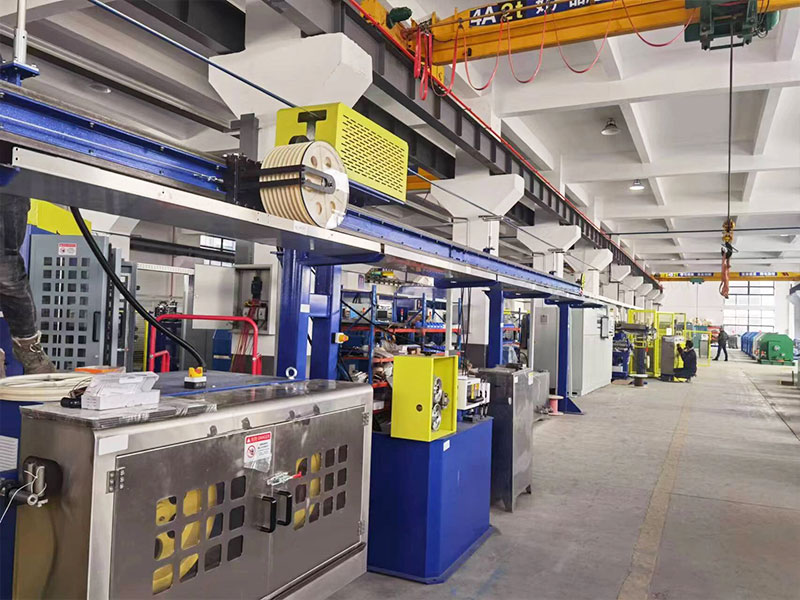

Wire Accumulation Tension Stand Horizontal wire accumulation tension stand, total length of 12 meters, 10 grooves + 9 grooves on the wire storage wheel, total wire storage of 200 meters, magnetic powder clutch tension, vertical or other types are customizable.  No
Wire Accumulation Wheel Diameter Ø300, wheel diameter specification can be customized Ø400, wheel diameter specification can be customized No
Meter Counter Pressure wheel type meter counter, meter wheel circumference of 500mm, encoder detection, adjustable meter correction coefficient, other types of meter counters are customizable. Caterpillar capstan with metre counting function, other models can be customized.
Take-up Type Dual-head shaftless take-ups, electric lifting, screw rod wire arrangement, other types are customizable. End axial foundation take-up, torque take-up mode, other types can be customized.
Take-up Reel Specifications Ø500/Ø630/Ø800/Ø1000/Ø1250 Ø1000/Ø1250/Ø1600/Ø2000/Ø2500
Take-up Power 3.7KW gear motor 5.5KW motor＋gearbox

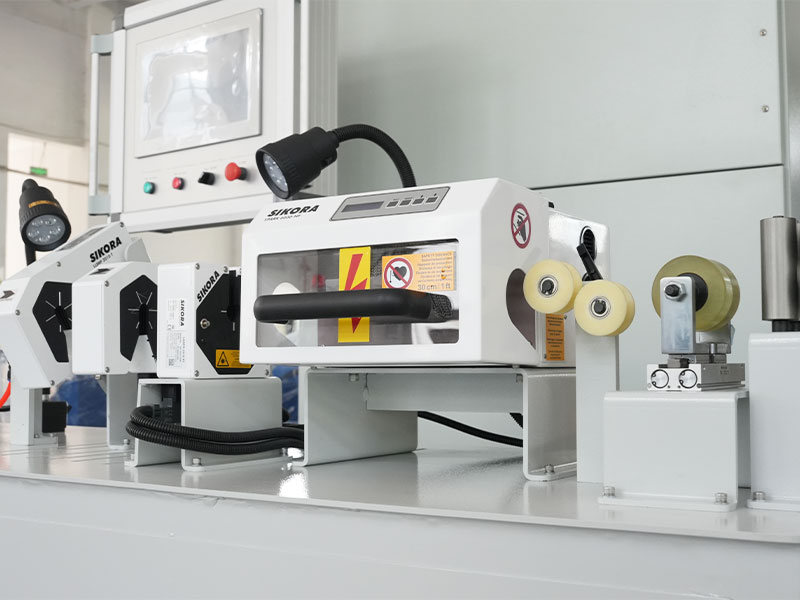

Laser Diameter Gauge Made-in-Chian single-axis diameter gauge, measuring accuracy of 0.001, other brands such as SIKORA/ZUMBACH/PROTON/TAKIKAWA can be customized.
Industrial frequency Spark Tester Made-in-China bead-type high-voltage spark tester, voltage range 0-15KV, customizable other brands such as CLINTON/SIKORA/PROTON
Control Electrical Box Environmentally friendly flame-retardant paint-coated VICTOR electric cabinet, WEINVIEW 10” HMI, SIEMENS PLC, SCHEIDER switches, RKC temperature controller, motor and frequency converter brands are customizable.
Gross Power 60KW 72KW 80KW 95KW 130KW 200KW


OPTIONAL CUSTOMIZATION ITEMS

Front capstan Ø500 double-wheel front capstan can be customized Ø600 double-wheel front capstan can be customized Ø800KG caterpillar front capstan can be customized
Injection machine The injection machine is customizable, horizontal injection molding machine is preferred for sheath extrusion.
Inner/outer layer extruder The inner/outer layer extruder can be customized, with a preferred V-shaped layout.
Pressure detection  A pressure sensor or explosion-proof safety valve can be added to the flange plate of the machine head.
Vacuum extractor Vacuum devices can be added to the inlet of the machine head.
Spiral color master batch mixer The spiral color master batch mixer is customizable.
Power machine Customizable option to add an electric stirring-type powder machine or electrostatic environmentally friendly powder machine.
Wire cutting machine The wire-cutting machine is customizable.
Coiling plate Customizable options to add a simple or fast coiling plate.
8-type coiling machine 8 types of coiling machines are customizable.
Automatic coiling machine/wrapping machine The automatic coiling machine/wrapping machine is customizable.
Air pump blowing dryer The air pump blowing dryer is customizable.
Lump detector Customizable option to add lump detection features to the measuring instrument on Chinese brands diameter gauge, or customize other brands like SIKORA/ZUMBACH/PROTON/TAKIKAWA.
Inkjet printer  IMAJE/KGK/LEIBINGER is customizable.
Eccentricity Measurement BETA/SIKORA/ZUMBACH/PROTON/TAKIKAWA is customizable.
Water chiller The water chiller is customizable, and the tank has an interlayer insulation structure.
Hanging electronic display board Customizable option to add a double-sided LED electronic screen or other types.
Intelligent recipe management system Customizable option to add an intelligent formula management system, storing data such as wire tension, preheating temperature, extrusion outer diameter, wire spacing, and air pressure in the PLC. With bus communication mode, it supports MES data collection and import, one-click access to the production process, one-click start-up, and achieves digital intelligent production.
Peripheral auxiliary equipment Support for customizing additional peripheral auxiliary equipment or special customized extrusion line.
Electrical wiring 2.5-meter overhead cable trough stand, air pipes, signal wires, and power cable arranged with isolations, wire inlet from the top of the electrical control box, customizable alternative methods.
Safety regulations and standards Manufactured according to Chinese CCC safety standards, customizable according to CE/CSA/UL safety standards.
Power supply standards 3-phase 380V/50Hz, customizable for different voltages and frequencies in various countries and regions.




PRODUCT FEATURES

● High production yield: Screw-optimized design, wear-resistant, non-stick, chrome without dropping, glue-free hiding, fast color change, high line speed, high production yield.

● Wide range of applications: depending on the type of materials, it can be equipped with the corresponding extruder screw, which can provide single-thread gradient type, BM double-thread separation type, and other types of screws.

● Leak-proof design: The unique sealing and positioning structures ensure that the flange does not leak material, and the height level of extrusion head remains stable even for long-term use.

● Accurate temperature control: ±1℃.

● Intelligent: Intelligent formula management system can be customizable. It has one-click access to SOP formula, one-click start-up preparation, one-click start-up, and smart control.

● Easy maintenance: Customers outside of China can customize the use of the Profinet bus control system, which ensures fast and low-interference signal transmission. As long as there is a communication network in any country or region, remote fault detection, troubleshooting, and maintenance services can be quickly implemented.
