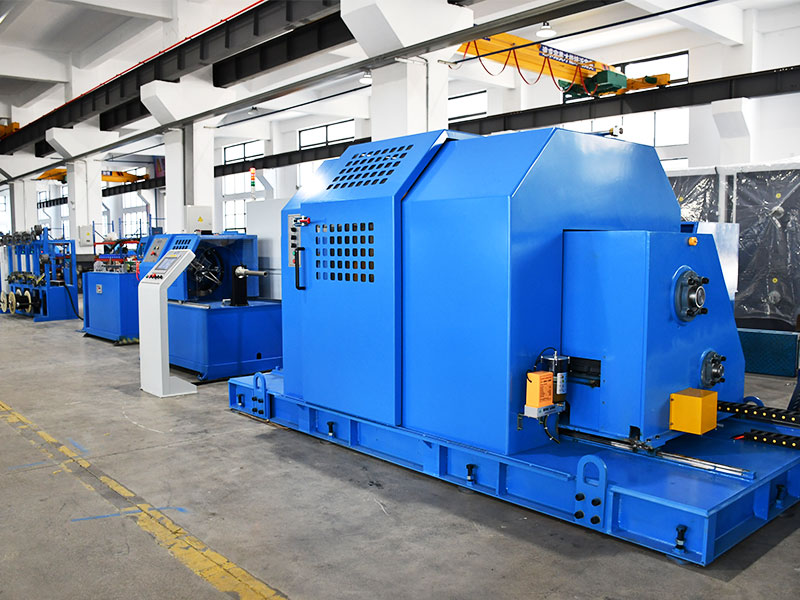

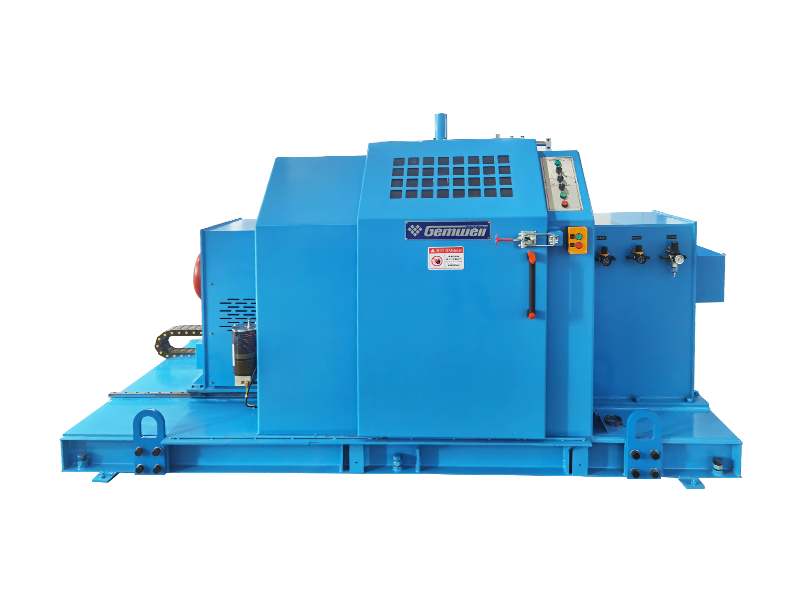

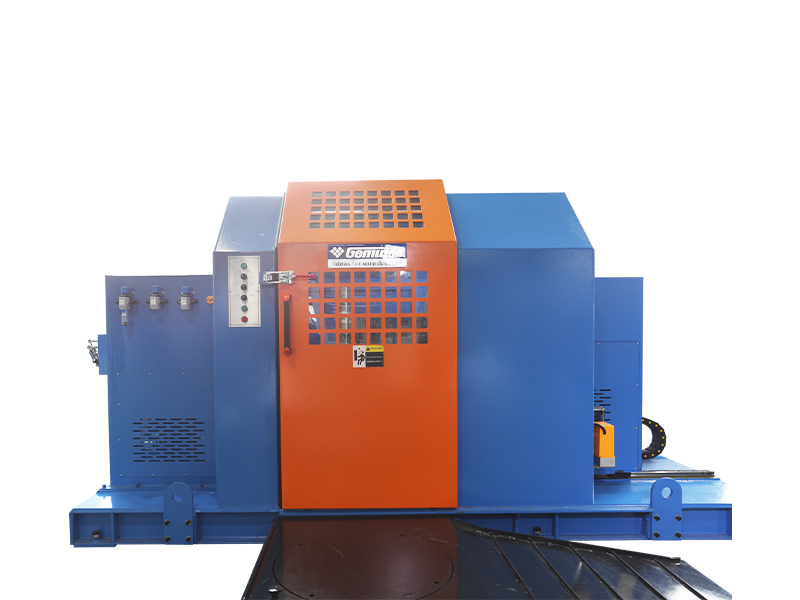

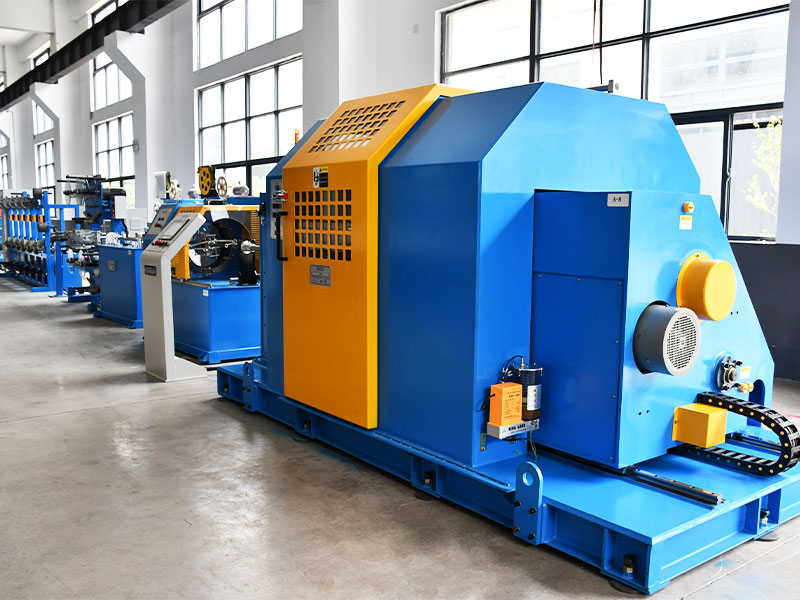

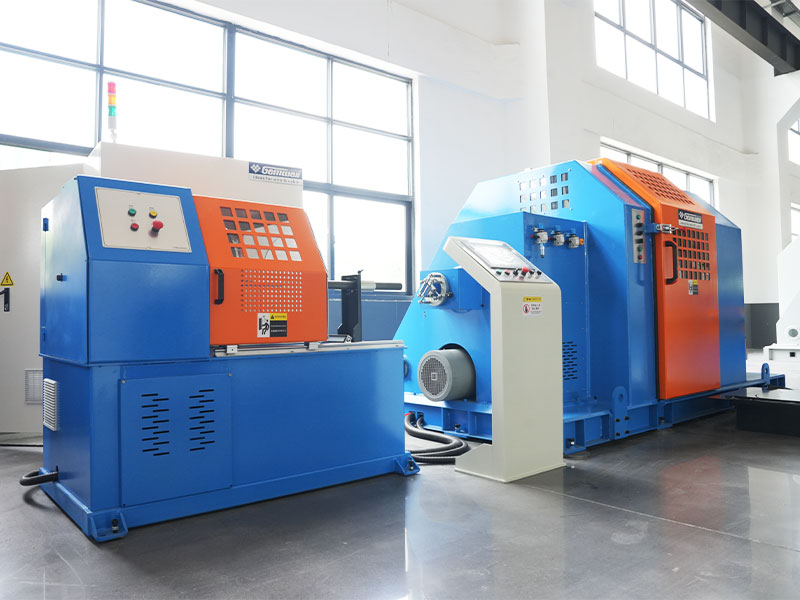

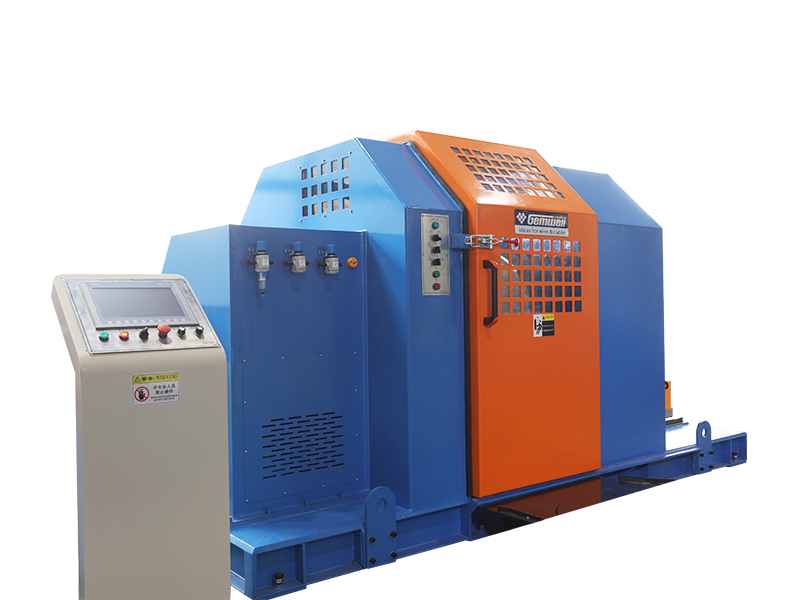

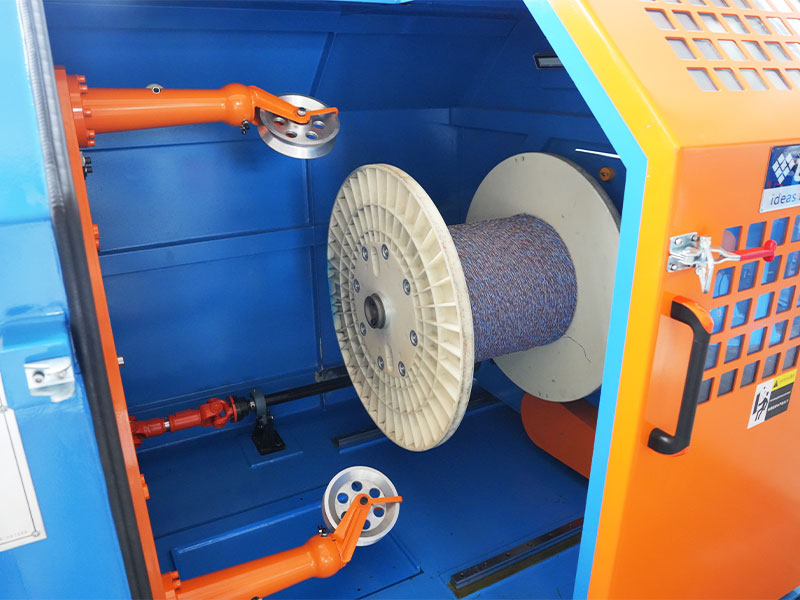

Speed Differential Take-Up Type Cantilever Single Twisting Machine (Without Capstan Pulley)

Speed Differential Take-Up Type Cantilever Single Twisting Machine (Without Capstan Pulley) has a mechanical trasmission pivot between the stranding cantilever and the take-up via transmission shaft and differential. The stranding cantilever motor drives the stranding cantilever and the differential to rotate synchronously at a constant speed, transmitting the first constant speed to the differential; the motor at the take-up end transmits the second variable speed to the differential at a variable speed. The first constant speed and the second variable speed are synthesized into a third variable speed to drive the take-up spindle to rotate and take up the wire. A rotational speed difference is formed between the constant rotational speed of the stranding cantilever and the variable rotational speed of the take-up spindle. The rotational speed difference ratio depends on the stranding pitch setting. The twisted wires are wound onto the spool because of the difference in speed. As the wires accumulate on the spool from empty to full, the diameter gradually increases. The control system automatically adjusts the second variable speed of the take-up spindle motor, and the differential automatically transverses to the third variable rotational speed to the take-up spindle. This is how the production of twisted wires is maintained at a constant line speed. This machine can be equipped with different types of auxiliary equipment such as pay-off racks, center rotating taping machines, and longitudinal taping machines to realize the twisting of various wires with an outer diameter within 25mm into cables. It has high production efficiency, low faults, and high-cost performance.
